Single-channel instrumentation amplifier with a high common-mode rejection ratio of 100dB. Features a wide bandwidth of 150kHz and a high voltage gain of 80dB, with a maximum gain of 10000dB. Operates with dual supply voltages from ±1.35V to ±18V, or single supply from 2.7V to 36V. Offers low input bias current of 25nA and input offset voltage of 250µV. Packaged in a 16-pin PDIP, this RoHS compliant component is suitable for a broad operating temperature range.
PackageN
Current325uA
Resistance100GR
Quick Jump:
Technical Specifications
Texas Instruments INA125P technical specifications.
General
-3db Bandwidth
150kHz
Bandwidth
150kHz
Package/Case
N
Common Mode Rejection Ratio
100dB
Dual Supply Voltage
15V
Gain
10000dB
Gain Bandwidth Product
150kHz
Input Bias Current
25nA
Input Offset Voltage (Vos)
250uV
Input Resistance
100GR
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
2.7V
Number of Amplifiers
2
Number of Channels
1
Number of Circuits
1
Number of Elements
2
Operating Supply Current
460uA
Operating Supply Voltage
5V
Output Current per Channel
12mA
Package Quantity
25
Packaging
Rail/Tube
Quiescent Current
460uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100GR
RoHS Compliant
Yes
Series
INA125
Slew Rate
0.2V/µs
Supply Current
325uA
Thickness
3.9mm
Voltage Gain
80dB
Weight
0.037172oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA125P Datasheet
Download the complete datasheet for Texas Instruments INA125P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

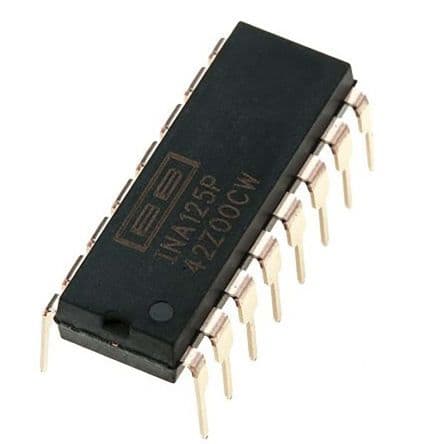

Product Images
