Single-channel instrumentation amplifier with 150kHz bandwidth and 90dB CMRR. Features 500µV input offset voltage, 50nA input bias current, and 100GΩ input resistance. Operates with dual supply voltages from ±1.35V to ±18V or single supply from 2.7V to 36V. Delivers 12mA output current per channel with a 0.2V/µs slew rate. Packaged in a 16-pin SOIC with a 150kHz gain bandwidth product.
PackageD
Current325uA
Quick Jump:
Technical Specifications
Texas Instruments INA125UA technical specifications.
General
-3db Bandwidth
150kHz
Bandwidth
150kHz
Package/Case
D
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
15V
Gain Bandwidth Product
150kHz
Height
1.58mm
Input Bias Current
50nA
Input Offset Voltage (Vos)
500uV
Input Resistance
100GR
Lead Free
Lead Free
Length
9.9mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
2
Operating Supply Current
460uA
Operating Supply Voltage
5V
Output Current per Channel
12mA
Package Quantity
40
Packaging
Rail/Tube
Quiescent Current
460uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INA125
Slew Rate
0.2V/µs
Supply Current
325uA
Voltage Gain
80dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA125UA Datasheet
Download the complete datasheet for Texas Instruments INA125UA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

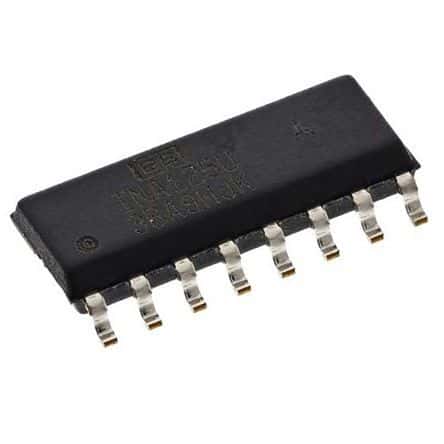

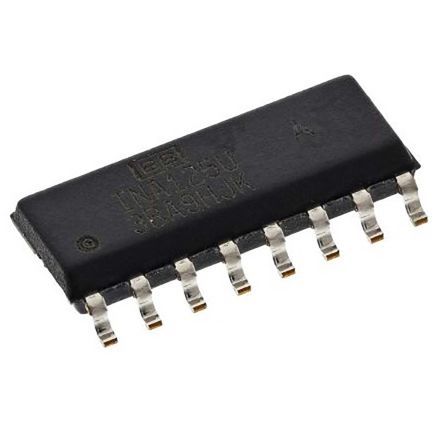

Product Images
