Texas Instruments
INA126E/250
Precision Instrumentation Amplifier, 200kHz BW, 250uV Vos, 175uA Iq, VSSOP
Precision instrumentation amplifier featuring 250µV input offset voltage and 200kHz bandwidth. Offers 83dB common mode rejection ratio and 1GΩ input resistance. Operates from a wide dual supply voltage range of 1.35V to 18V, with a maximum single supply of 36V. Low quiescent current of 175µA and 35nV/√Hz input voltage noise density. Packaged in an 8-VSSOP, this RoHS compliant component is suitable for operation from -55°C to 125°C.
PackageVSSOP
Current200uA
Quick Jump:
Technical Specifications
Texas Instruments INA126E/250 technical specifications.
General
-3db Bandwidth
200kHz
Bandwidth
200kHz
Package/Case
VSSOP
Common Mode Rejection Ratio
83dB
Dual Supply Voltage
15V
Gain Bandwidth Product
200kHz
Input Bias Current
25nA
Input Offset Voltage (Vos)
250uV
Input Resistance
1GR
Input Voltage Noise Density
35nV/sqrt Hz
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
36V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
2
Output Current per Channel
10mA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
106dB
Quiescent Current
175uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Supply Current
200uA
Voltage Gain
80dB
Weight
0.000917oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA126E/250 Datasheet
Download the complete datasheet for Texas Instruments INA126E/250 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

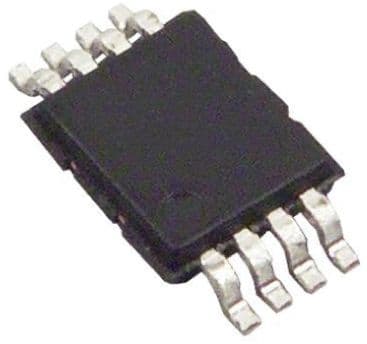

Product Images
