TEXAS INSTRUMENTS

INA126UA

Datasheet

Inst Amp 200kHz BW, 74dB CMRR, 18V Dual Supply, 8-Pin SOIC

Texas Instruments

INA126UA

Name: INA126UA Texas Instruments
Brand: Texas Instruments
SKU: INA126UA

Inst Amp 200kHz BW, 74dB CMRR, 18V Dual Supply, 8-Pin SOIC

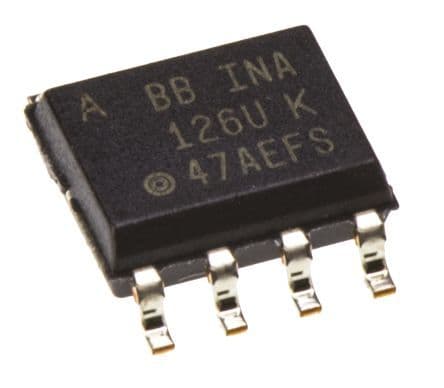

Single-channel instrumentation amplifier featuring a 200kHz -3dB bandwidth and 200kHz gain bandwidth product. Offers a high Common Mode Rejection Ratio of 74dB and Power Supply Rejection Ratio of 106dB. Operates with dual supply voltages from ±1.35V to ±18V, with a maximum supply voltage of 36V. Input bias current is 50nA, input offset voltage is 500µV, and input resistance is 1GΩ. Packaged in an 8-pin SOIC (D) surface-mount device, this RoHS compliant component has a slew rate of 0.4V/µs and a maximum operating temperature of 125°C.

PackageD

Current175uA

Quick Jump:

Technical Specifications

Texas Instruments INA126UA technical specifications.

General

-3db Bandwidth	200kHz
Bandwidth	200kHz
Package/Case	D
Common Mode Rejection Ratio	74dB
Dual Supply Voltage	15V
Gain Bandwidth Product	200kHz
Height	1.58mm
Input Bias Current	50nA
Input Offset Voltage (Vos)	500uV
Input Resistance	1GR
Input Voltage Noise Density	35nV/sqrt Hz
Lead Free	Lead Free
Length	4.9mm
Max Dual Supply Voltage	18V
Min Dual Supply Voltage	1.35V
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Supply Current	200uA
Max Supply Voltage	36V
Min Supply Voltage	2.7V
Number of Amplifiers	2
Number of Channels	1
Number of Circuits	1
Number of Elements	2
Operating Supply Current	175uA
Output Current per Channel	10mA
Package Quantity	75
Packaging	Rail/Tube
Power Supply Rejection Ratio (PSRR)	106dB
Quiescent Current	175uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	INA126
Slew Rate	0.4V/µs
Supply Current	175uA
Termination	SMD/SMT
Voltage Gain	80dB
Weight	0.002677oz
Width	3.91mm
