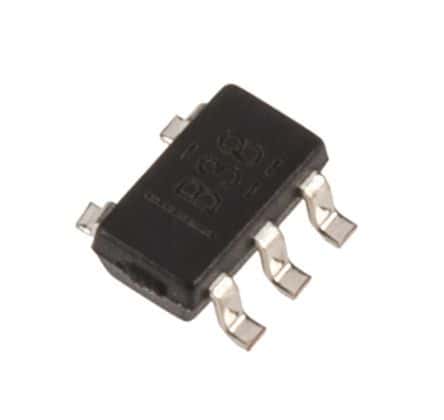

Single-channel, surface-mount current sense amplifier with a 36V maximum supply voltage and 2.7V minimum supply voltage. Features 0.5% accuracy, 800kHz bandwidth, and 100dB common mode rejection ratio. Operates with a low 60µA supply current and offers a 1mV input offset voltage. Packaged in a 5-pin SOT-23 for tape and reel distribution.
PackageSOT-23
Current25uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA138NA/250 technical specifications.
General
Accuracy
0.5%
Bandwidth
800kHz
Package/Case
SOT-23
Common Mode Rejection Ratio
100dB
Gain Bandwidth Product
800kHz
Height
1.15mm
Input Bias Current
2uA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Elements
1
Operating Supply Current
60uA
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
25uA
Termination
SMD/SMT
Thickness
1.2mm
Weight
0.000617oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA138NA/250 Datasheet
Download the complete datasheet for Texas Instruments INA138NA/250 to view detailed technical specifications.
