Single-channel, special purpose current sense amplifier with a 40V maximum supply voltage. Features 2% accuracy, 400kHz bandwidth, and 120dB common mode rejection ratio. Operates from a 2.7V to 40V supply with a typical 75uA supply current. Surface mountable in an 8-pin VSSOP package, this lead-free component is RoHS compliant and suitable for automotive applications.
PackageVSSOP
Current75uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA170EA/2K5 technical specifications.
General
Accuracy
2%
Bandwidth
400kHz
Package/Case
VSSOP
Common Mode Rejection Ratio
120dB
Input Bias Current
10uA
Input Offset Voltage (Vos)
1mV
Input Resistance
10GR
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
40V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Elements
2
Operating Supply Current
125uA
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
INA170
Supply Current
75uA
Weight
0.000917oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA170EA/2K5 Datasheet
Download the complete datasheet for Texas Instruments INA170EA/2K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

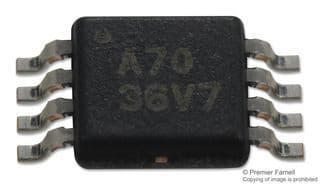

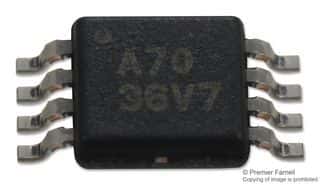

Product Images
