Bi-directional current sense amplifier, operating from 2.7V to 26V, features a 1.5% accuracy and a 14MHz bandwidth. This single-channel IC offers a 100dB CMRR and 140dB PSRR, with a low input offset voltage of 150µV. Packaged in a 10-UQFN (1.85mm x 1.45mm x 0.5mm) for surface mounting, it operates across a -40°C to 125°C temperature range.
PackageQFN
Current65uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA199A1RSWT technical specifications.
General
Accuracy
1.5%
Bandwidth
14MHz
Package/Case
QFN
Common Mode Rejection Ratio
100dB
Gain Bandwidth Product
80kHz
Height
0.5mm
Input Bias Current
28uA
Input Offset Voltage (Vos)
150uV
Length
1.85mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
100uA
Max Supply Voltage
26V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
115uA
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
140dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Supply Current
65uA
Thickness
450um
Unity Gain Bandwidth Product
14kHz
Voltage Gain
33.98dB
Weight
0.000353oz
Width
1.45mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA199A1RSWT Datasheet
Download the complete datasheet for Texas Instruments INA199A1RSWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

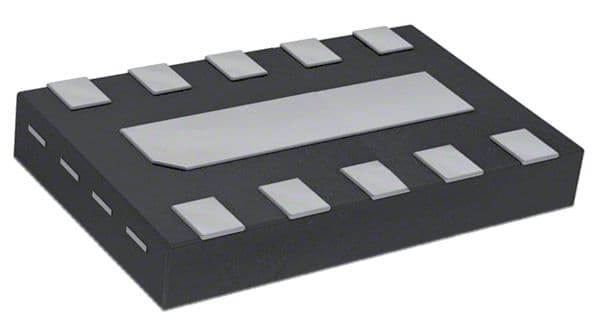

Product Images
