Texas Instruments
INA212AQDCKRQ1
AEC-Q100, 26V, bi-directional, high-precision current sense amplifier 6-SC70 -40 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA212AQDCKRQ1 technical specifications.
General
Accuracy
1%
Gain Bandwidth Product
4kHz
Input Bias Current
28uA
Input Offset Voltage (Vos)
0.55uV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Operating Supply Current
65uA
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Slew Rate
0.4V/µs
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA212AQDCKRQ1 Datasheet
Download the complete datasheet for Texas Instruments INA212AQDCKRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

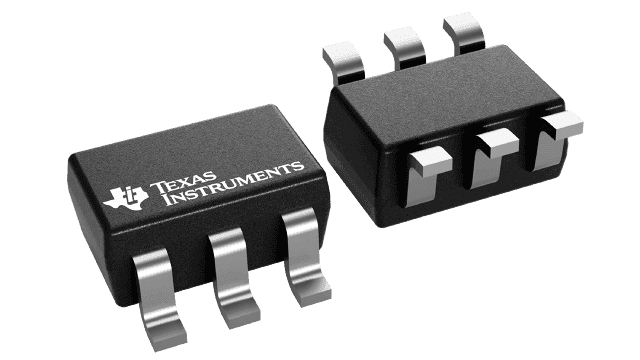

Product Images
