Dual-channel, special-purpose amplifier featuring a 2.4mA quiescent current and 14V/µs slew rate. Offers a 74dB common mode rejection ratio and 1mV input offset voltage. Operates with a dual supply voltage range of ±4V to ±18V or a single supply of 8V to 36V. Packaged in a 14-pin SOIC with dimensions of 8.65mm length, 3.91mm width, and 1.58mm height. RoHS compliant and lead-free.
PackageD
Quick Jump:
Technical Specifications
Texas Instruments INA2137UA technical specifications.
General
| Package/Case | D |
| Common Mode Rejection Ratio | 74dB |
| Height | 1.58mm |
| Input Offset Voltage (Vos) | 1mV |
| Input Resistance | 24kR |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 8V |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 2.4mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Quiescent Current | 2.4mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | INA2137 |
| Slew Rate | 14V/µs |
| Voltage Gain | 6.021dB |
| Weight | 0.004564oz |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments INA2137UA Datasheet
Download the complete datasheet for Texas Instruments INA2137UA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

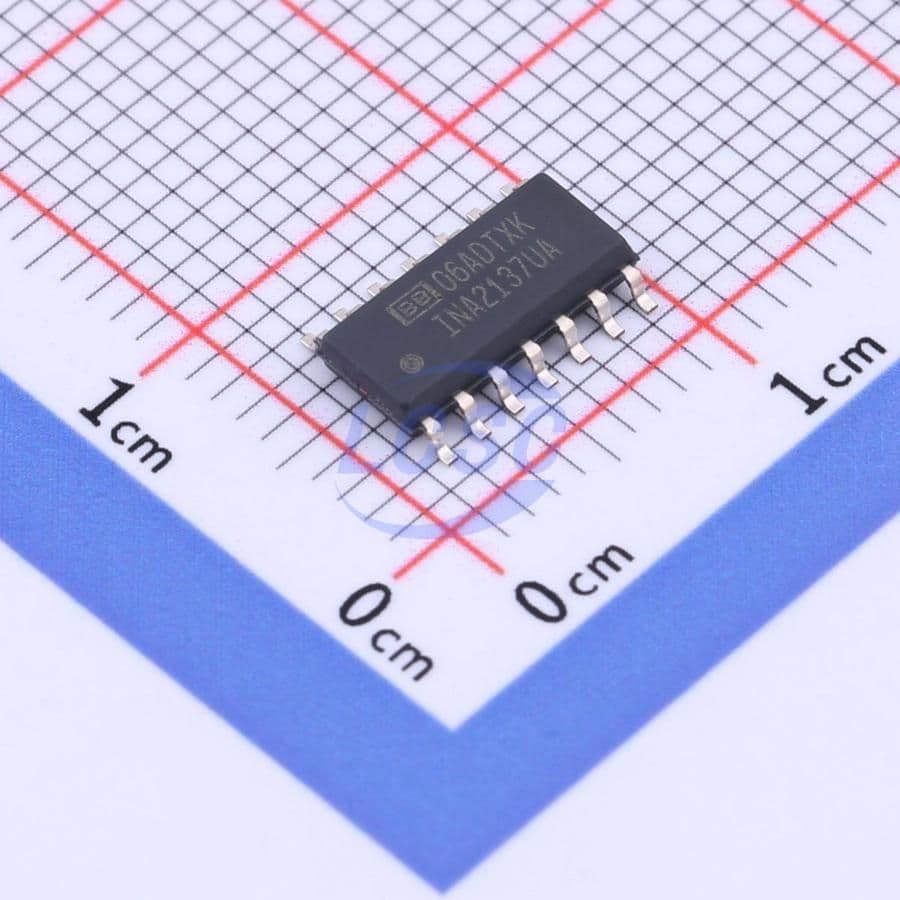

Product Images
