High-precision, bi-directional current sense amplifier featuring a 26V maximum input and supply voltage. This single-channel operational amplifier offers 1% accuracy, a 14kHz bandwidth, and a 40dB voltage gain. With a low input offset voltage of 60µV and excellent 105dB CMRR, it operates from 2.7V to 26V over a -40°C to 125°C temperature range. Surface mountable in a compact SC package, this RoHS compliant component is ideal for demanding current monitoring applications.
PackageSC
Current65uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA214AIDCKT technical specifications.
General
Accuracy
1%
Bandwidth
14kHz
Package/Case
SC
Common Mode Rejection Ratio
105dB
Gain Bandwidth Product
30kHz
Height
0.9mm
Input Bias Current
35uA
Input Offset Voltage (Vos)
60uV
Lead Free
Lead Free
Length
2mm
Max Input Voltage
26V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
26V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Elements
1
Operating Supply Current
115uA
Operating Supply Voltage
24V
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
140dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.04V/µs
Supply Current
65uA
Termination
SMD/SMT
Unity Gain Bandwidth Product
14kHz
Voltage Gain
40dB
Weight
8.8E-05oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA214AIDCKT Datasheet
Download the complete datasheet for Texas Instruments INA214AIDCKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

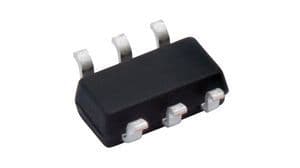

Product Images
