Single-channel, zero-drift current shunt monitor IC featuring 0.4% accuracy and a 10kHz bandwidth. This surface-mount device operates from a 2.7V to 18V supply, with a maximum supply current of 900uA. It boasts a low input offset voltage of 70uV and high common-mode rejection ratio of 120dB. Packaged in an 8-pin SOIC, this RoHS-compliant component is suitable for automotive applications.
PackageSOIC
Resistance6kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA282AID technical specifications.
General
Accuracy
0.4%
Bandwidth
10kHz
Package/Case
SOIC
Common Mode Rejection Ratio
120dB
Height
1.5mm
Input Bias Current
25uA
Input Offset Voltage (Vos)
70uV
Input Resistance
6kR
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
900uA
Max Supply Voltage
18V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Operating Supply Current
900uA
Package Quantity
75
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
110.46dB
Radiation Hardening
No
Resistance
6kR
RoHS Compliant
Yes
Series
Zero-Drift
Thickness
1.58mm
Voltage Gain
33.98dB
Weight
0.002677oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA282AID Datasheet
Download the complete datasheet for Texas Instruments INA282AID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

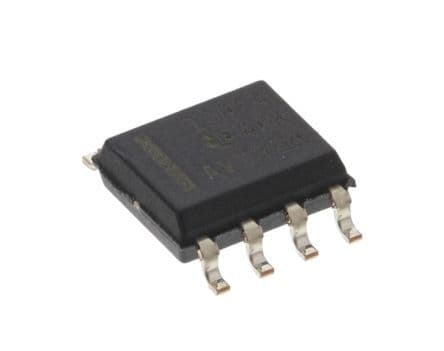

Product Images
