Single-channel instrumentation amplifier featuring a 2MHz bandwidth and 2MHz gain bandwidth product. Offers 80dB common mode rejection ratio and 86.02dB power supply rejection ratio. Operates from a 2.5V to 5.5V supply with a low 415µA quiescent current. Includes 1mV input offset voltage and 10pA input bias current. Packaged in an 8-pin VSSOP, this RoHS compliant component delivers 48mA output current per channel and a 5V/µs slew rate.
PackageMSOP
Current490uA
Quick Jump:
Technical Specifications
Texas Instruments INA331AIDGKT technical specifications.
General
-3db Bandwidth
2MHz
Bandwidth
2MHz
Package/Case
MSOP
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
2MHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
1mV
Input Resistance
10000GR
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Amplifiers
3
Number of Channels
1
Number of Circuits
1
Number of Elements
3
Operating Supply Current
415uA
Output Current per Channel
48mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
86.02dB
Quiescent Current
415uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
5V/µs
Supply Current
490uA
Voltage Gain
60dB
Weight
0.000917oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA331AIDGKT Datasheet
Download the complete datasheet for Texas Instruments INA331AIDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

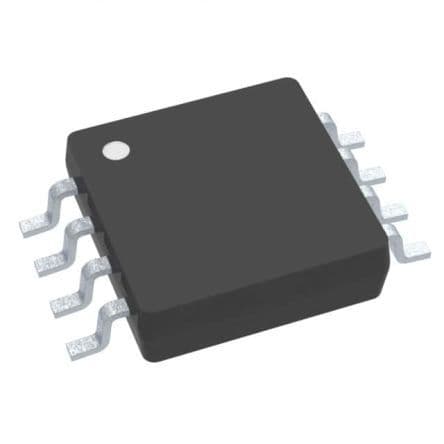

Product Images
