Full-duplex, isolated RS-485/RS-422 transceiver operating at 200Kbps. Features a 2.5-kVrms isolation rating and a working voltage of 560V. This unidirectional transceiver is housed in a 16-SOIC package, supporting a supply voltage range of 3.15V to 5.5V with a typical operating current of 15mA. It offers one driver and one receiver, with a maximum power dissipation of 220mW and an operating temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackageSOIC
Current15mA
Voltage Rating560V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO3080DW technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
200Kbps
Isolated Power
No
Lead Free
Lead Free
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
220mW
Max Supply Voltage
5.5V
Min Supply Voltage
3.15V
Number of Channels
3
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
15mA
Packaging
Rail/Tube
Polarity
Unidirectional
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
15mA
Weight
0.023492oz
Working Voltage
560V
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO3080DW Datasheet
Download the complete datasheet for Texas Instruments ISO3080DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

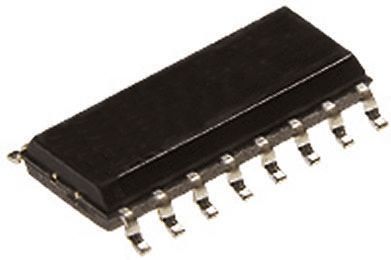

Product Images
