Full-duplex, 20-Mbps isolated RS-485/RS-422 transceiver in a 16-SOIC package. Features 2.5-kVrms isolation, 5.5V maximum supply voltage, and operates from 3.15V to 5.5V. Includes one driver and one receiver, with a 60mA output current. This RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
PackageSOIC
Current15mA
Voltage Rating560V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO3086DW technical specifications.
General
Package/Case
SOIC
Data Rate
20Mbps
Lead Free
Lead Free
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
220mW
Max Supply Voltage
5.5V
Min Supply Voltage
3.15V
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
15mA
Operating Supply Voltage
5V
Output Current
60mA
Package Quantity
40
Packaging
Rail/Tube
Polarity
Unidirectional
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
15mA
Weight
0.023492oz
Working Voltage
560V
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO3086DW Datasheet
Download the complete datasheet for Texas Instruments ISO3086DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

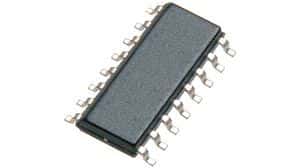

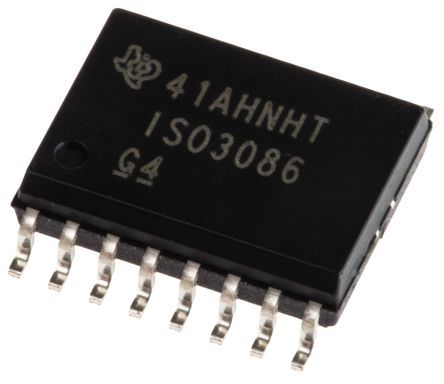

Product Images
