General purpose digital isolator, 4-channel unidirectional interface IC with 50Mbps data rate and 2.5kV isolation voltage. Features a 16-pin SSOP surface mount package, operating from a 2.7V to 5V supply. Offers 35ns propagation delay and 3ns pulse width distortion, with a maximum operating temperature of 125°C. RoHS compliant and lead-free.
PackageSSOP
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO7140FCCDBQ technical specifications.
General
Package/Case
SSOP
Channel Type
Unidirectional
Data Rate
50Mbps
Isolated Power
No
Isolation Voltage
2.5kV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
150mW
Max Supply Voltage
5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
4
Operating Supply Current
15.6mA
Package Quantity
75
Packaging
Rail/Tube
Polarity
Unidirectional
Propagation Delay
35ns
Pulse Width Distortion (PWD)
3ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
23ns
Type
General Purpose
Weight
0.004586oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO7140FCCDBQ Datasheet
Download the complete datasheet for Texas Instruments ISO7140FCCDBQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

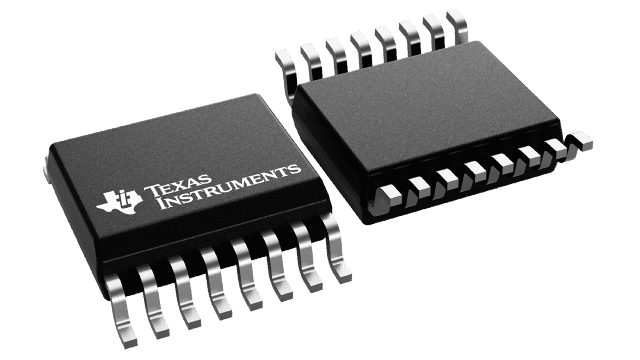

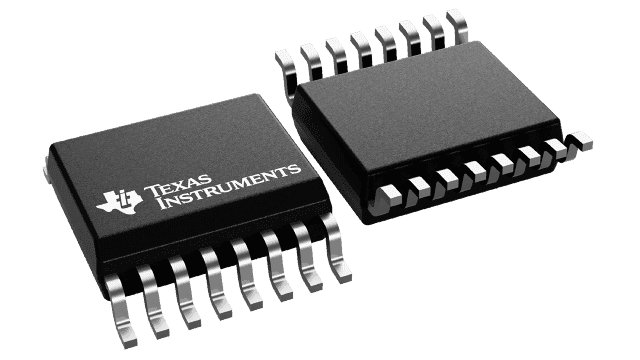

Product Images
