Four-channel H-bridge motor driver IC featuring a maximum output current of 2A per channel and a maximum supply voltage of 36V. This bipolar technology component offers a parallel interface and supports through-hole mounting in a 16-pin PDIP package. Operating temperature range is 0°C to 70°C, with a supply current of 24mA. RoHS compliant and packaged in a tube for convenience.
PackagePDIP
Current24mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments L293NE technical specifications.
General
Package/Case
PDIP
Height
4.57mm
Interface
Parallel
Lead Free
Lead Free
Length
19.8mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
2A
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Drivers
4
Number of Outputs
4
Output Current
1A
Output Voltage
36V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
24mA
Technology
BIPOLAR
Thickness
4.57mm
Weight
0.03357oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments L293NE Datasheet
Download the complete datasheet for Texas Instruments L293NE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

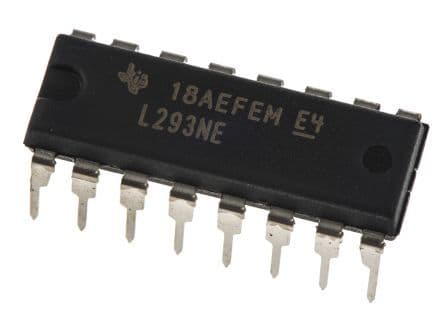

Product Images
