Dual JFET-input operational amplifier featuring a 3MHz gain bandwidth product and 13V/µs slew rate. This through-hole mounted IC offers a 100dB voltage gain and 70dB common mode rejection ratio. Designed for dual supply operation from ±3.5V to ±18V, it exhibits a low input bias current of 200pA. The component operates within a 0°C to 70°C temperature range and is housed in an 8-pin PDIP package.
PackagePDIP
Current6.5mA
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LF353P technical specifications.
General
| Bandwidth | 3MHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 70dB |
| Dual Supply Voltage | 9V |
| Gain Bandwidth Product | 3MHz |
| Height | 4.57mm |
| Input Bias Current | 200pA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Length | 9.81mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 3.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 500mW |
| Max Supply Current | 6.5mA |
| Mount | Through Hole |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 3.6mA |
| Operating Supply Voltage | 18V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 13V/µs |
| Supply Current | 6.5mA |
| Technology | BIFET |
| Unity Gain Bandwidth Product | 3MHz |
| Voltage Gain | 100dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LF353P Datasheet
Download the complete datasheet for Texas Instruments LF353P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

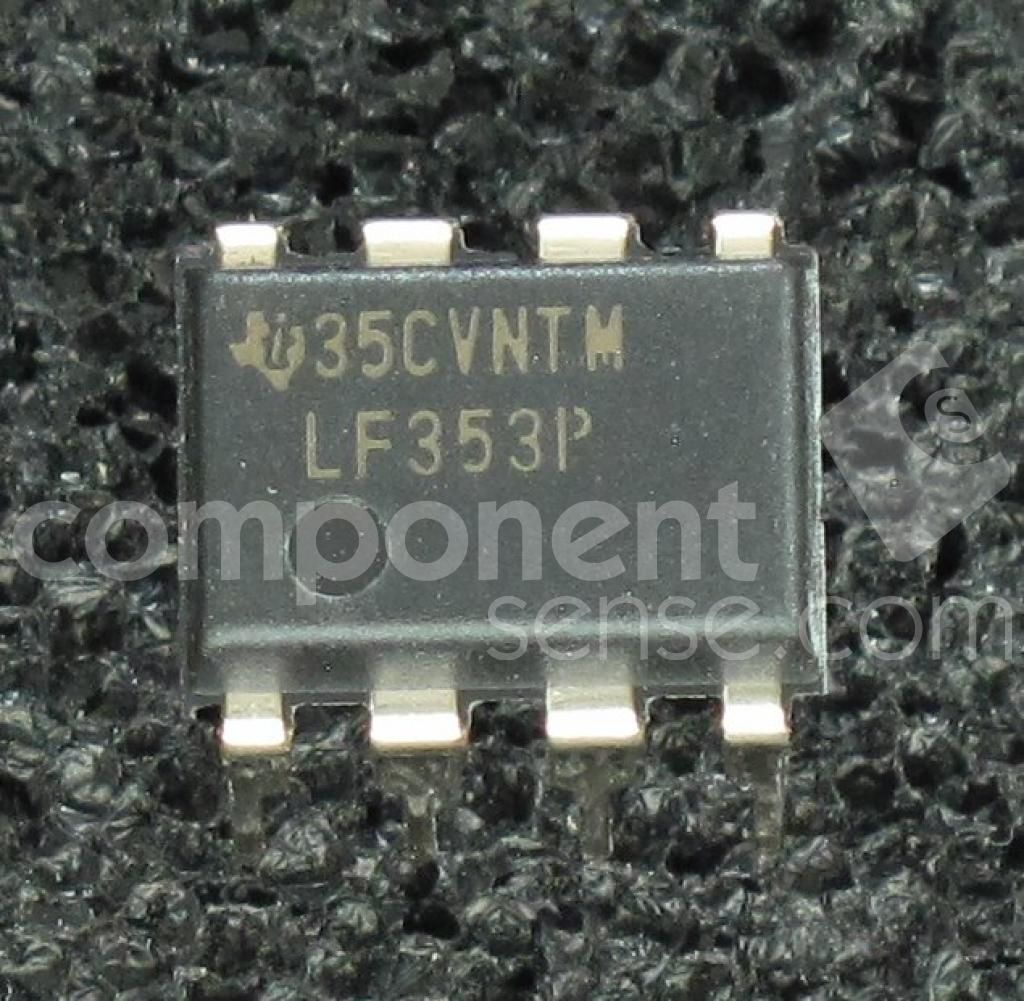

Product Images
