JFET input operational amplifier featuring a 5MHz bandwidth and 12V/µs slew rate. This single-channel amplifier offers a 3mV input offset voltage and 30pA input bias current, with a 1.5µs settling time. Designed for through-hole mounting in an 8-PDIP package, it operates from a dual supply voltage range of ±10V to ±18V, with a maximum supply voltage of ±36V. Key performance metrics include 80dB common mode rejection ratio and 80dB power supply rejection ratio.
PackagePDIP
Current5mA
MountingThrough Hole
Power670mW
Quick Jump:
Technical Specifications
Texas Instruments LF356N/NOPB technical specifications.
General
| Bandwidth | 5MHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 80dB |
| Dual Supply Voltage | 15V |
| Gain Bandwidth Product | 5MHz |
| Height | 3.3mm |
| Input Bias Current | 30pA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Dual Supply Voltage | 18V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 25mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 10V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 5mA |
| Output Current | 25mA |
| Output Current per Channel | 25mA |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Dissipation | 670mW |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | BI-FET™ |
| Settling Time | 1.5us |
| Slew Rate | 12V/µs |
| Supply Current | 5mA |
| Technology | BIFET |
| Thickness | 3.9mm |
| Unity Gain Bandwidth Product | 5MHz |
| Voltage Gain | 106.02dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LF356N/NOPB Datasheet
Download the complete datasheet for Texas Instruments LF356N/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

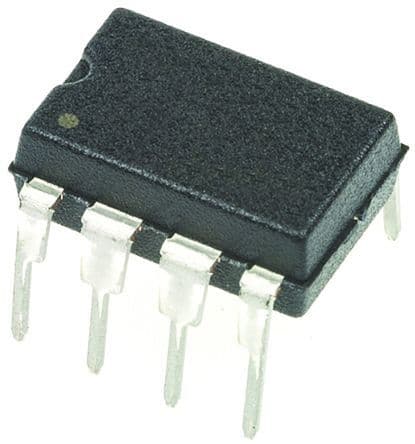

Product Images
