Adjustable positive linear voltage regulator with a 5A output current capability. Features a maximum input voltage of 29V and a dropout voltage of 1.3V. Operates across a wide temperature range from -40°C to 125°C. Packaged in a TO-263 surface-mount case, this component offers a 75dB Power Supply Rejection Ratio and a 1.262V reference voltage.
PackageTO-263
Current Rating5A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1084IS-ADJ/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
5A
Dropout Voltage
1.3V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
29V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
27.5V
Min Output Voltage
1.25V
Max Power Dissipation
30W
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
5A
Output Type
Adjustable
Output Voltage
12V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.262V
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1084IS-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1084IS-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

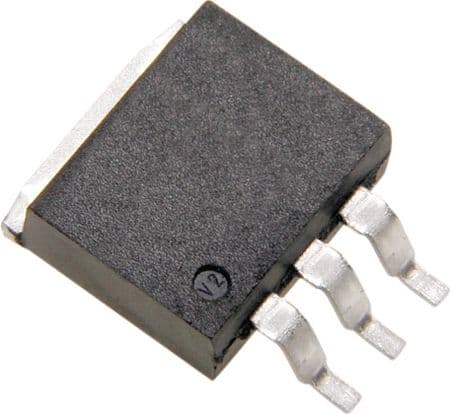

Product Images
