Adjustable positive linear voltage regulator, offering 1.5A output current with a maximum input voltage of 25V. Features a dropout voltage of 1.3V and an adjustable output voltage range from 1.25V to 27.5V. Operates within a temperature range of 0°C to 125°C. Packaged in a TO-263 surface mount package, supplied on tape and reel.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086ISX-ADJ/NOPB technical specifications.
General
| Package/Case | TO-263 |
| Dropout Voltage | 1.3V |
| Lead Free | Contains Lead |
| Min Current Limit | 1.5A |
| Max Input Voltage | 25V |
| Min Input Voltage | 2.6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Voltage | 27.5V |
| Min Output Voltage | 1.25V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 15V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.262V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM1086ISX-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086ISX-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

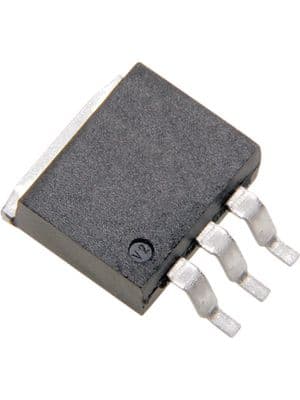

Product Images
