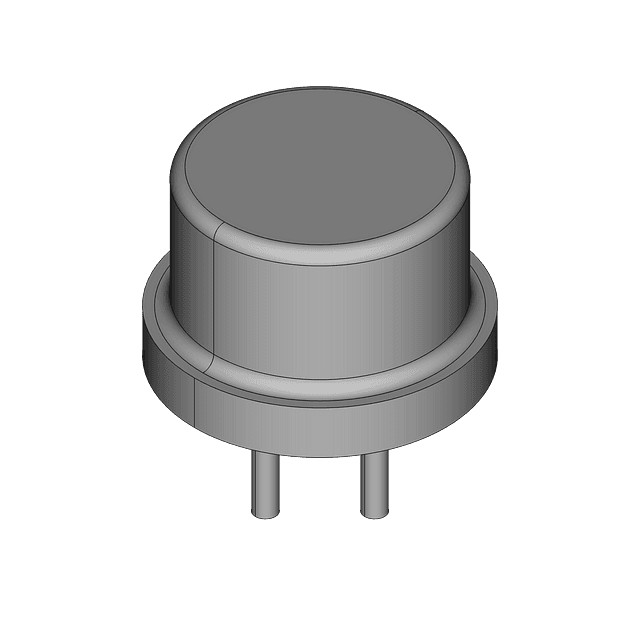

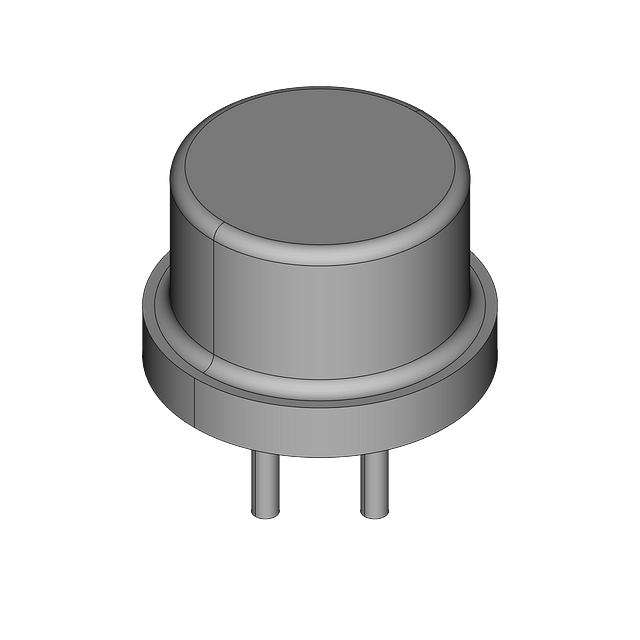

The LM109K/883 is a linear voltage regulator with a fixed output voltage of 5.05V and a maximum output current of 1A. It operates over a wide input voltage range of 7.1V to 35V and is suitable for applications requiring a stable output voltage. The device is available in a through-hole package and has a maximum operating temperature of 125°C. However, it is not RoHS compliant and contains lead, making it less suitable for modern applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM109K/883 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Dropout Voltage | 3V |
| Lead Free | Contains Lead |
| Max Input Voltage | 35V |
| Min Input Voltage | 7.1V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 1A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Type | Fixed |
| Output Voltage | 5.05V |
| Polarity | Positive |
| Quiescent Current | 10mA |
| RoHS Compliant | No |
| RoHS | Not Compliant |
