Adjustable positive linear voltage regulator, offering 800mA output current with a 1.2V dropout voltage. Features 1% output voltage accuracy and a maximum input voltage of 15V. Operates across a wide temperature range from -40°C to 125°C. Packaged in a 4-SOT-223 surface mount configuration, this RoHS compliant component is supplied on tape and reel.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1117IMPX-ADJ/NOPB technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Dropout Voltage
1.2V
Height
1.8mm
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
800mA
Max Input Voltage
15V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
800mA
Max Output Voltage
13.8V
Min Output Voltage
1.25V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Adjustable
Output Voltage
13.8V
Output Voltage Accuracy
1%
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Positive
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.262V
RoHS Compliant
Yes
Thickness
1.6mm
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1117IMPX-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1117IMPX-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

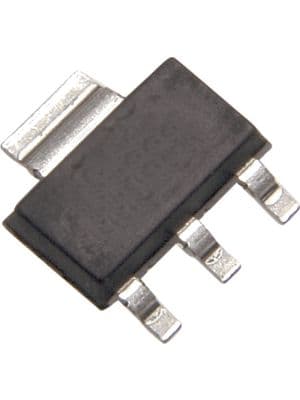

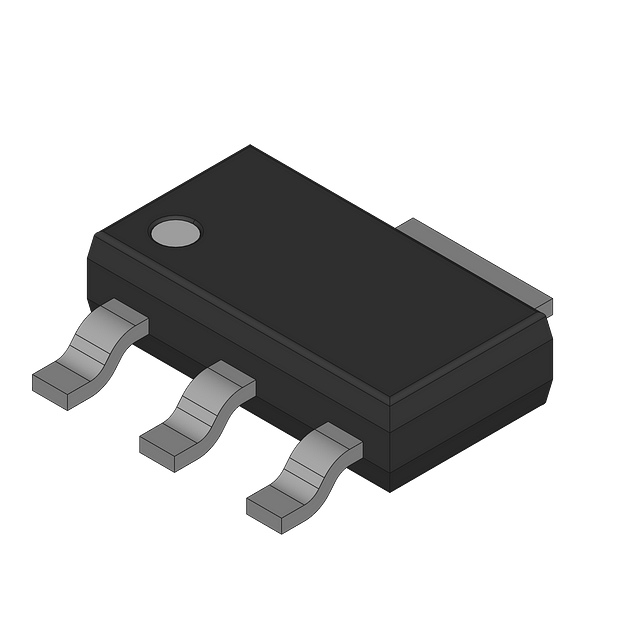

Product Images
