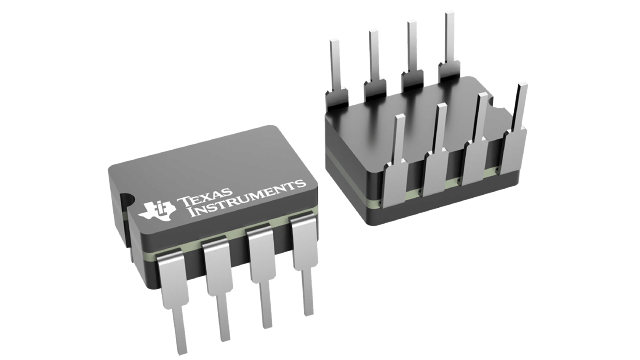

Differential comparator IC featuring a single channel with a 165ns response time and 106.02dB voltage gain. Operates with a supply voltage range of 1.75V to 15V dual supply or 3.5V to 30V single supply, consuming 6mA supply current. Designed for through-hole mounting in an 8-pin CDIP package, measuring 10.16mm x 7.11mm x 5.08mm. Suitable for operation across a wide temperature range from -55°C to 125°C, with an input offset voltage of 3mV and input bias current of 100nA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM111JG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | CDIP |
| Height | 5.08mm |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3.5V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Response Time | 165ns |
| RoHS Compliant | No |
| Supply Current | 6mA |
| Technology | BIPOLAR |
| Voltage Gain | 106.02dB |
| Width | 7.11mm |
| RoHS | Not CompliantNo |
