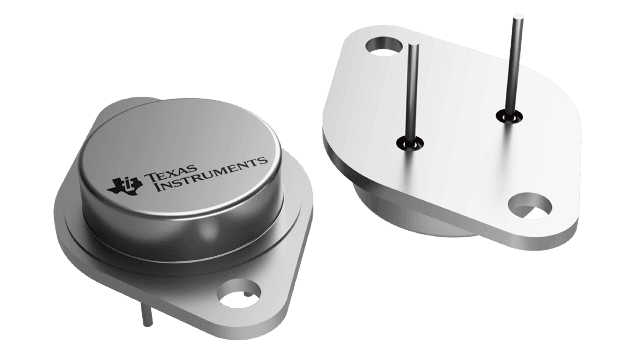

The LM117HVH/883 is a linear voltage regulator with an adjustable output voltage of 57V and a maximum output current of 1.5A. It operates from a minimum input voltage of 4.2V and a maximum input voltage of 60V. The device is packaged in a TO-39 package and is designed for through-hole mounting. The LM117HVH/883 is also radiation hardened and has a quiescent current of 9uA. It is not RoHS compliant and contains lead.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM117HVH/883 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-39 |
| Dropout Voltage | 1.5V |
| Lead Free | Contains Lead |
| Max Input Voltage | 60V |
| Min Input Voltage | 4.2V |
| Max Output Current | 1.5A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 57V |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 9uA |
| Radiation Hardening | Yes |
| Reference Voltage | 1.3V |
| RoHS Compliant | No |
| RoHS | Not CompliantYes |
