TEXAS INSTRUMENTS

LM119H

Datasheet

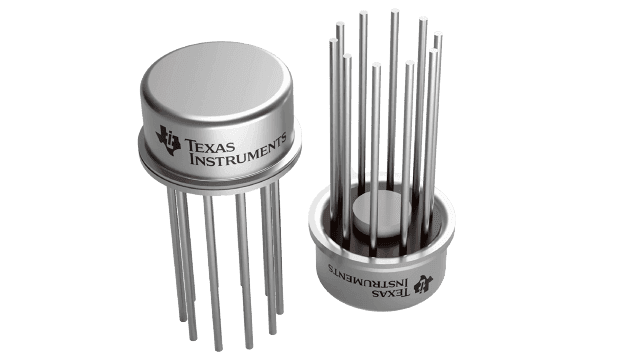

Dual Comparator IC, High Speed, 80ns, TTL Out, TO-100

Texas Instruments

LM119H

Name: LM119H Texas Instruments
Brand: Texas Instruments
SKU: LM119H

Dual Comparator IC, High Speed, 80ns, TTL Out, TO-100

High-speed dual comparator, featuring 2 channels and 2 elements, operates with a dual supply voltage range of 2.5V to 15V, with a maximum dual supply of 18V and a maximum single supply of 36V. This through-hole component boasts a fast 80ns response time and a 25mA output current with TTL output type. It offers a wide operating temperature range from -55°C to 125°C and a power dissipation of 500mW. Key electrical characteristics include a 500nA input bias current and a 4mV input offset voltage.

PackageTO-100

Current4.3mA

MountingThrough Hole

Power500mW

Quick Jump:

Technical Specifications

Texas Instruments LM119H technical specifications.

General

Package/Case	TO-100
Dual Supply Voltage	15V
Input Bias Current	500nA
Input Offset Voltage (Vos)	4mV
Lead Free	Contains Lead
Max Dual Supply Voltage	18V
Min Dual Supply Voltage	2.5V
Max Input Current	500nA
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Max Power Dissipation	500mW
Max Supply Current	4.3mA
Max Supply Voltage	36V
Min Supply Voltage	5V
Mount	Through Hole
Number of Channels	2
Number of Elements	2
Output Current	25mA
Output Type	TTL
Package Quantity	500
Packaging	Bulk
Power Dissipation	500mW
Quiescent Current	11.5mA
Response Time	80ns
RoHS Compliant	No
Supply Current	4.3mA
Technology	BIPOLAR
Type	General Purpose
Voltage Gain	92.04dB
