Technical Specifications
Texas Instruments LM119J-QMLV technical specifications.
General
Package/Case
CDIP
Common Mode Rejection Ratio
80dB
Input Bias Current
475nA
Input Offset Voltage (Vos)
3.8mV
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Supply Current
-4.2mA
Max Supply Voltage
36V
Min Supply Voltage
5V
Number of Channels
2
Output Current
25mA
Package Quantity
25
Packaging
Rail/Tube
Response Time
80ns
RoHS Compliant
No
Series
LM119QML-SP
Supply Current
11mA
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM119J-QMLV Datasheet
Download the complete datasheet for Texas Instruments LM119J-QMLV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

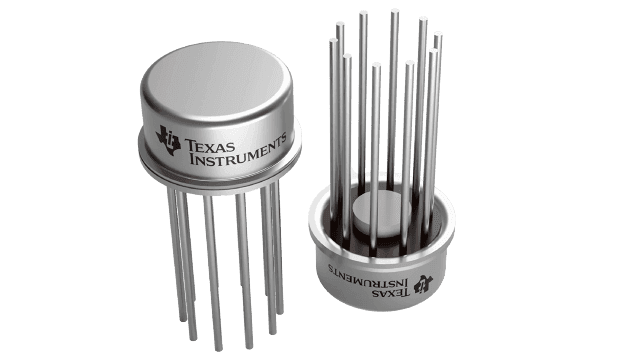

Product Images
