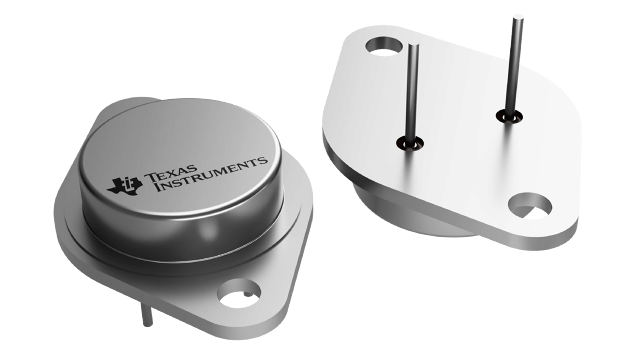

The LM120K-15/883 is a negative linear voltage regulator with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It has a power dissipation of 20W and a quiescent current of 4mA. The regulator is available in a TO-3 package with a through hole mount. It is not RoHS compliant and contains lead.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM120K-15/883 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-3 |
| Lead Free | Contains Lead |
| Min Input Voltage | -17V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Voltage | -15V |
| Output Voltage Accuracy | 3% |
| Packaging | Tray |
| Polarity | Negative |
| Power Dissipation | 20W |
| Quiescent Current | 4mA |
| RoHS Compliant | No |
| RoHS | Not Compliant |
Download the complete datasheet for Texas Instruments LM120K-15/883 to view detailed technical specifications.
