Quadruple operational amplifier featuring a 1.2MHz gain bandwidth product and 0.5V/µs slew rate. This through-hole mounted IC offers 4 channels with a 100dB voltage gain and 70dB common mode rejection ratio. Operating across a wide temperature range of -55°C to 125°C, it supports dual supply voltages from ±1.5V to ±16V or single supply from 3V to 32V. The component is packaged in a 14-pin CDIP.
PackageCDIP
MountingThrough Hole
Power1.26W
Quick Jump:
Technical Specifications
Texas Instruments LM124AJ technical specifications.
General
Package/Case
CDIP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1.2MHz
Input Bias Current
50nA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Through Hole
Number of Channels
4
Number of Elements
4
Output Current
20mA
Packaging
Rail/Tube
Power Dissipation
1.26W
Power Supply Rejection Ratio (PSRR)
65dB
Radiation Hardening
No
RoHS Compliant
No
Slew Rate
0.5V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
1.2MHz
Voltage Gain
100dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM124AJ Datasheet
Download the complete datasheet for Texas Instruments LM124AJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

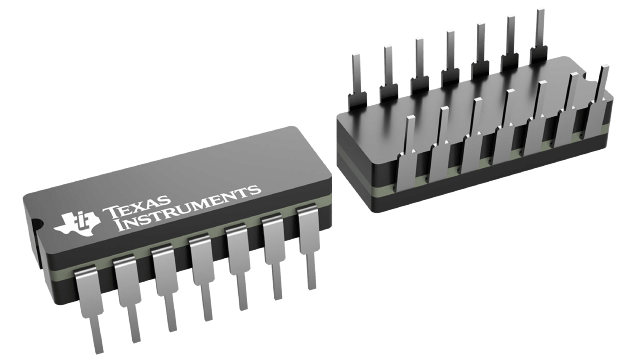

Product Images
