12V fixed output positive linear voltage regulator (LDO) with 100mA maximum output current. Features 2% output voltage accuracy and a 1.5V dropout voltage. Operates across an extended temperature range of -55°C to 125°C, with a maximum input voltage of 35V. Packaged in a TO-39 through-hole mount case, this lead-free and RoHS compliant component offers a Power Supply Rejection Ratio (PSRR) of 54dB.
PackageTO-39
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM140LAH-12 technical specifications.
General
Accuracy
2%
Package/Case
TO-39
Dropout Voltage
1.5V
Height
4.45mm
Lead Free
Lead Free
Length
9.14mm
Max Input Voltage
35V
Min Input Voltage
19V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
100mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
100mA
Output Type
Fixed
Output Voltage
12V
Output Voltage Accuracy
2%
Package Quantity
500
Packaging
Bulk
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
54dB
Quiescent Current
4.5mA
Radiation Hardening
No
RoHS Compliant
Yes
Width
9.14mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM140LAH-12 Datasheet
Download the complete datasheet for Texas Instruments LM140LAH-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

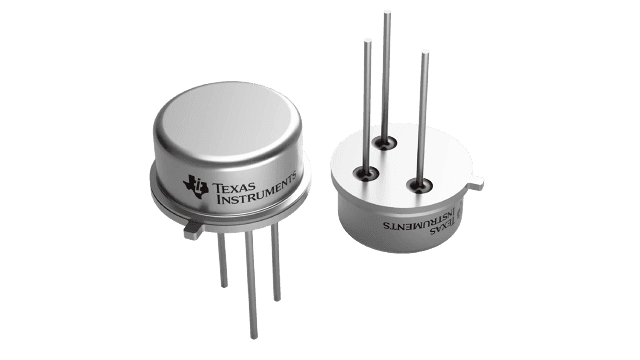

Product Images
