Dual compensated operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This general-purpose amplifier offers a 0.5V/µs slew rate and a voltage gain of 104.08dB. It operates with a supply voltage range of 6V to 36V, a dual supply voltage range of 3V to 18V, and draws 3mA of operating supply current. Packaged in a PDIP for through-hole mounting, this component has a 70dB common mode rejection ratio and a 77dB power supply rejection ratio.
PackagePDIP
Current3mA
MountingThrough Hole
Power400mW
Quick Jump:
Technical Specifications
Texas Instruments LM1458N technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
PDIP
Common Mode Rejection Ratio
70dB
Gain
1dB
Gain Bandwidth Product
1MHz
Input Bias Current
800nA
Input Offset Voltage (Vos)
6mV
Lead Free
Contains Lead
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
36V
Min Supply Voltage
6V
Mount
Through Hole
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
3mA
Operating Supply Voltage
18V
Output Current
45mA
Package Quantity
40
Packaging
Rail/Tube
Power Dissipation
400mW
Power Supply Rejection Ratio (PSRR)
77dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Slew Rate
0.5V/µs
Supply Current
3mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1MHz
Voltage Gain
104.08dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM1458N Datasheet
Download the complete datasheet for Texas Instruments LM1458N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

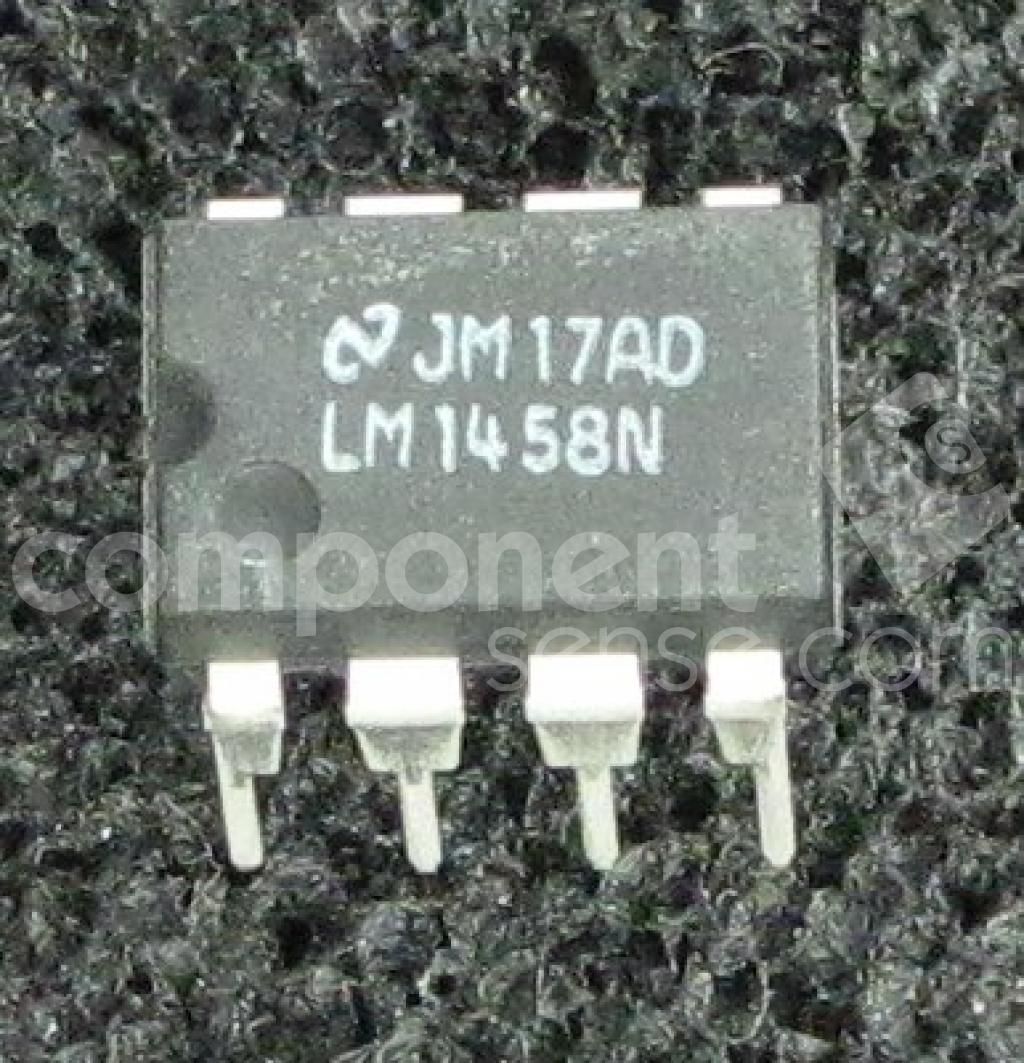

Product Images
