PackageTO-99
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LM1558H/883 technical specifications.
General
| Package/Case | TO-99 |
| Common Mode Rejection Ratio | 70dB |
| Input Bias Current | 500nA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 45mA |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Power Supply Rejection Ratio (PSRR) | 77dB |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 0.2V/µs |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 250kHz |
| Voltage Gain | 93.98dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM1558H/883 Datasheet
Download the complete datasheet for Texas Instruments LM1558H/883 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

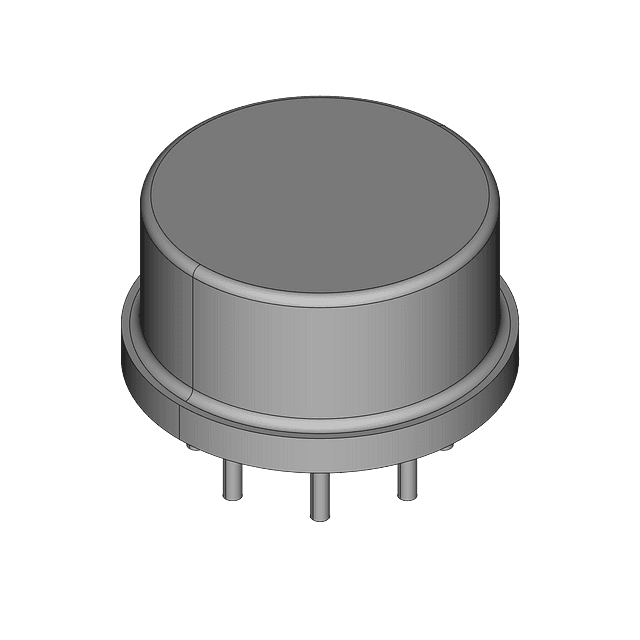

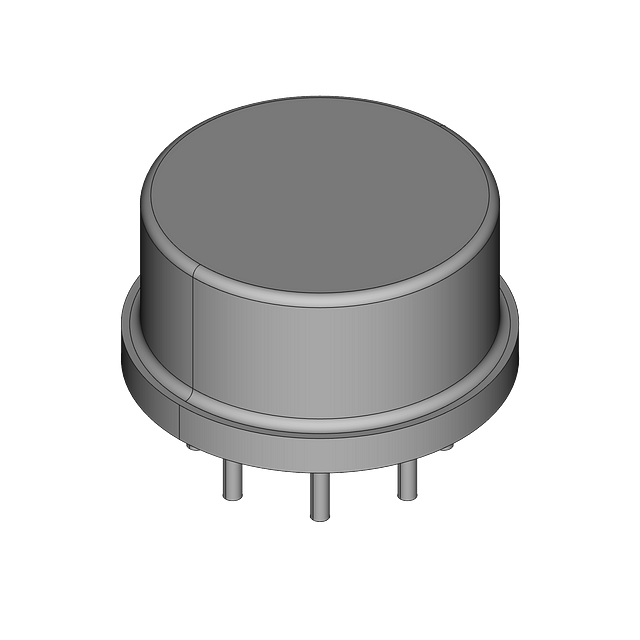

Product Images
