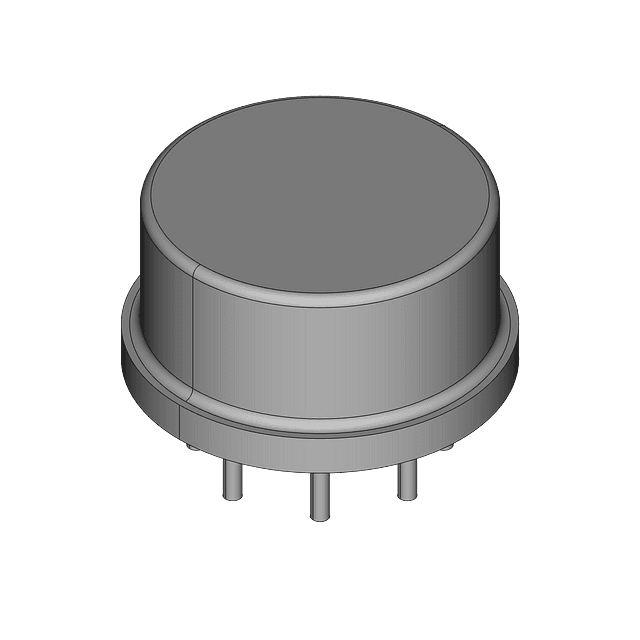

Dual operational amplifier featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This through-hole component offers a wide operating temperature range of -55°C to 125°C, with a maximum dual supply voltage of 16V and a maximum single supply voltage of 32V. It boasts a 70dB common mode rejection ratio and 65dB power supply rejection ratio, with 2mV input offset voltage and 1nA input bias current. The TO-99 package houses two amplifier elements, delivering 20mA output current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM158AH/883 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-99 |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 20mA |
| Packaging | Rail/Tube |
| Power Dissipation | 830mW |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 93.98dB |
| RoHS | Not CompliantNo |
