Dual operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This general-purpose op-amp offers a 2mV input offset voltage and 45nA input bias current. Designed for through-hole mounting in a TO-99 package, it operates with dual supply voltages from 1.5V to 16V or single supply from 3V to 32V. The component boasts a 100dB voltage gain, 0.5V/µs slew rate, and a 1mA operating supply current. It is rated for operation across a wide temperature range of -55°C to 125°C.
PackageTO-99
MountingThrough Hole
Power550mW
Quick Jump:
Technical Specifications
Texas Instruments LM158H technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
TO-99
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Input Bias Current
45nA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Through Hole
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Output Current per Channel
40mA
Packaging
Bulk
Power Dissipation
550mW
Power Supply Rejection Ratio (PSRR)
65dB
Reach SVHC Compliant
No
RoHS Compliant
No
Slew Rate
0.5V/µs
Technology
BIPOLAR
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM158H Datasheet
Download the complete datasheet for Texas Instruments LM158H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

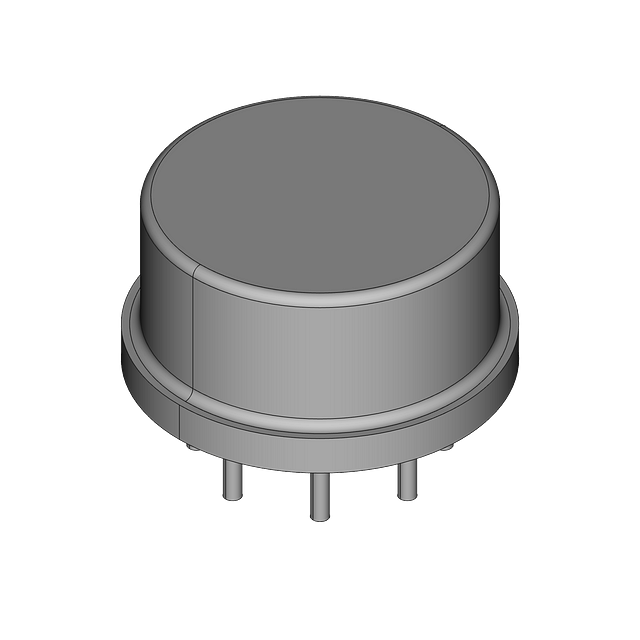

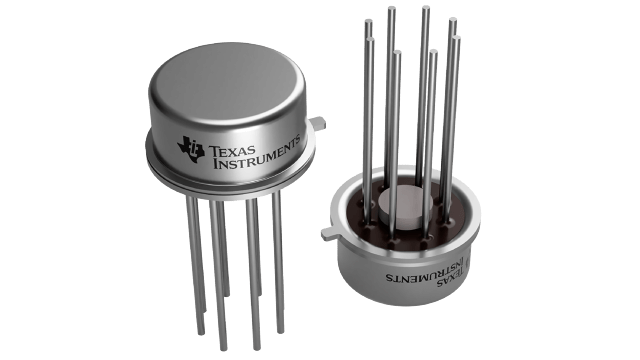

Product Images
