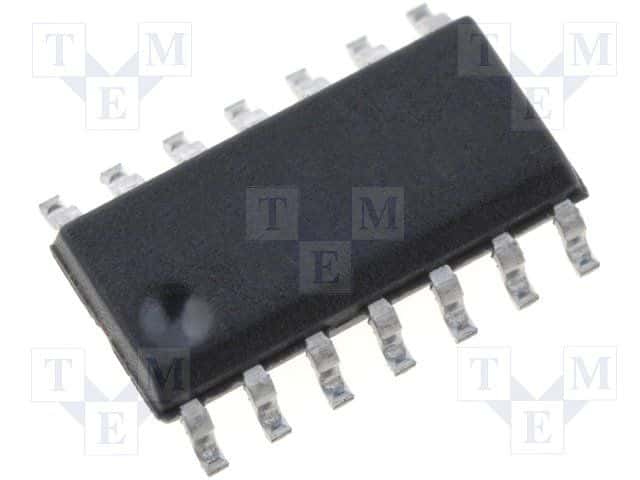

Surface mount sensor and detector interface IC with a 12V maximum input voltage and 12V maximum supply voltage. Features a 2V minimum supply voltage, 3.6mA supply current, and 5uA input bias current. Operates across a -40°C to 125°C temperature range, housed in a 14-pin SOIC package measuring 8.64mm x 3.91mm x 1.45mm. This RoHS compliant component offers a 1.25W maximum power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM1815M/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Height | 1.45mm |
| Input Bias Current | 5uA |
| Lead Free | Lead Free |
| Length | 8.64mm |
| Max Input Voltage | 12V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.25W |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Current | 6mA |
| Package Quantity | 55 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3.6mA |
| Width | 3.91mm |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LM1815M/NOPB to view detailed technical specifications.
