Synchronous buck regulator, voltage mode, 12A output current, 2.95V to 5.5V input voltage range, and 600mV to 5.5V adjustable output voltage. Features include adjustable frequency operation, a 1.5mA quiescent current, and a 12A maximum output current. Packaged in a 20-pin HTSSOP with dimensions of 6.5mm length, 4.4mm width, and 1mm height, this surface-mount component operates from -40°C to 125°C and is RoHS compliant.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM21212MH-2/NOPB technical specifications.
General
| Package/Case | HTSSOP |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.95V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 12A |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 600mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 12A |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Quiescent Current | 1.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM21212-2 |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM21212MH-2/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM21212MH-2/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

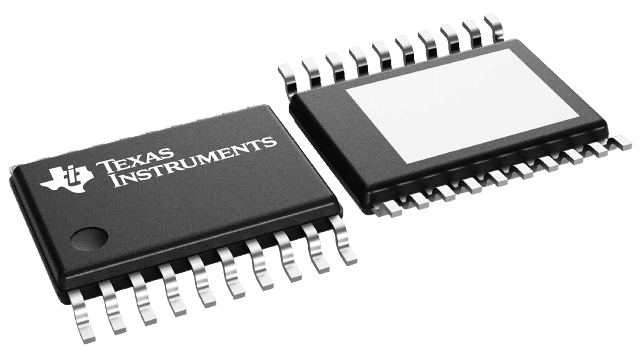

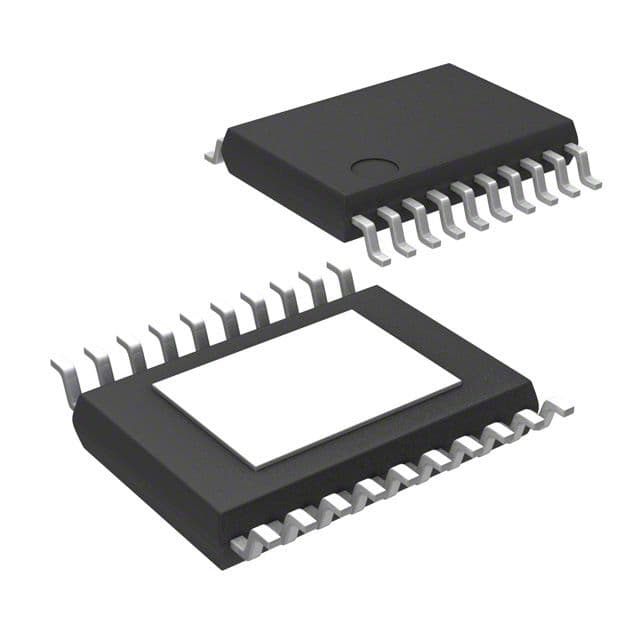

Product Images
