3A adjustable step-down voltage regulator with a 4.5V to 42V input range and up to 37V output. Features 90% efficiency, adjustable soft-start, and current limit. Operates from -40°C to 125°C in a lead-free, RoHS compliant 8-SO PowerPAD surface-mount package.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM22673MR-ADJ/NOPB technical specifications.
General
Package/Case
SOP
Efficiency
90%
Height
1.47mm
Lead Free
Lead Free
Length
4.93mm
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
37V
Min Output Voltage
1.285V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
1.285V
Package Quantity
95
Packaging
Rail/Tube
Quiescent Current
3.4mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM22673MR-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM22673MR-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

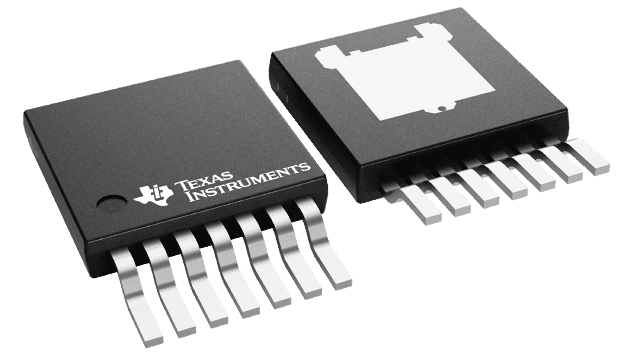

Product Images
