Adjustable 2A step-down DC/DC switching regulator with a 4.5V to 42V input voltage range. Features a maximum output voltage of 37V and a minimum output voltage of 1.285V, delivering up to 2A output current. This surface mountable, lead-free component offers 89% efficiency and operates from -40°C to 125°C. Includes a precision enable function and is packaged in a RoHS compliant 8-SO PowerPAD.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM22680MRE-ADJ/NOPB technical specifications.
General
| Package/Case | SOP |
| Efficiency | 89% |
| Lead Free | Lead Free |
| Max Input Voltage | 42V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.285V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 42V |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 1.285V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 3.4mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM22680MRE-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM22680MRE-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

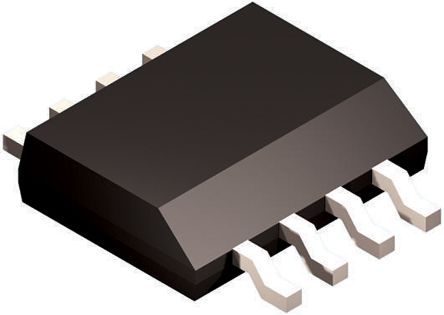

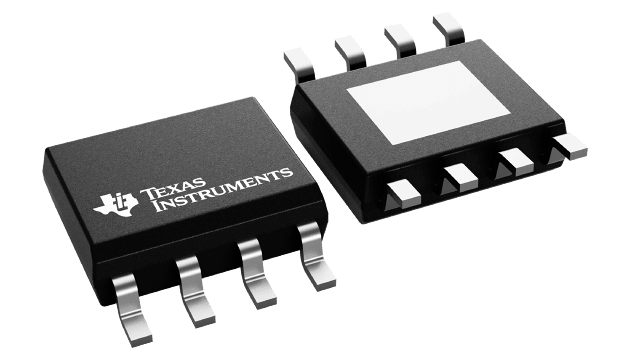

Product Images
