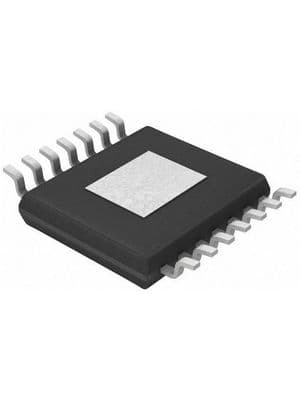

Constant On-Time Non-Synchronous Buck Regulator with 6V to 42V input voltage range and 1A maximum output current. Features adjustable output voltage from 2.5V to 37V, achieving up to 95% efficiency. Operates across a -40°C to 125°C temperature range, housed in a 14-pin HTSSOP EP package for surface mounting. This lead-free, RoHS compliant component offers a quiescent current of 645µA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM25010MH/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | HTSSOP EP |
| Efficiency | 95% |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 42V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 27V |
| Min Output Voltage | 2.5V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 94 |
| Packaging | Rail/Tube |
| Quiescent Current | 645uA |
| RoHS Compliant | Yes |
| Series | LM25010 |
| Supply Current | 16mA |
| Width | 4.4mm |
| RoHS | Compliant |
