The LM25011AQ1MYX/NOPB is a surface-mount DC/DC controller with a positive output configuration. It operates over a temperature range of -40°C to 125°C and can handle input voltages from 6V to 42V. The device features an adjustable output voltage, with a maximum output voltage of 40V and a minimum output voltage of 2.51V. It can supply up to 2A of output current. The LM25011AQ1MYX/NOPB is compliant with RoHS regulations and is part of the AEC-Q100 series for automotive applications.
Sign in to ask questions about the Texas Instruments LM25011AQ1MYX/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM25011AQ1MYX/NOPB technical specifications.

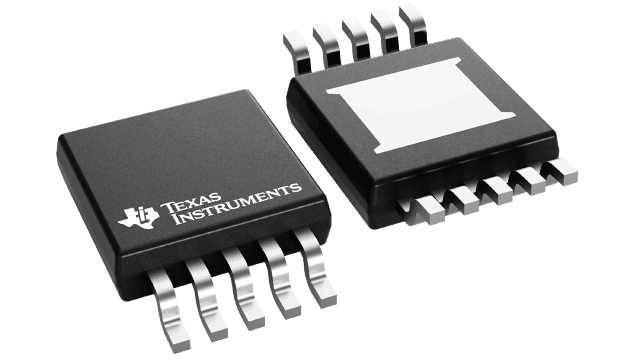

| Package/Case | HVSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 42V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 40V |
| Min Output Voltage | 2.51V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.2mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Synchronous Rectifier | No |
| RoHS | Compliant |
