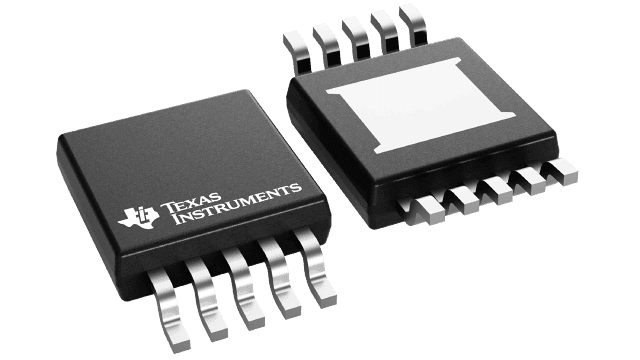

The LM25011Q1 is a DC/DC controller with an adjustable output voltage of 40V and a maximum output current of 2A. It operates from an input voltage of 6V to 42V and has a maximum operating temperature of 125°C. The device is packaged in a lead-free HVSSOP package and is RoHS compliant. It has a quiescent current of 1.2mA and is suitable for use in surface mount applications.
Sign in to ask questions about the Texas Instruments LM25011Q1MY/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM25011Q1MY/NOPB technical specifications.
| Package/Case | HVSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 42V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 40V |
| Min Output Voltage | 2.51V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 42V |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.2mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM25011-Q1 |
| RoHS | Compliant |
