Texas Instruments
LM25011Q1MYX/NOPB
Automotive 6-42V Wide Vin, 2A Constant-On Time Non-Synchronous Buck Regulator w/ Adj Current Limit 10-HVSSOP -40 to 125
PackageHVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM25011Q1MYX/NOPB technical specifications.
General
Package/Case
HVSSOP
Lead Free
Lead Free
Max Input Voltage
42V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
40V
Min Output Voltage
2.51V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
42V
Output Configuration
Positive
Output Current
2A
Output Type
Adjustable
Output Voltage
40V
Package Quantity
3500
Packaging
Tape and Reel
Quiescent Current
1.2mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM25011Q1MYX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM25011Q1MYX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

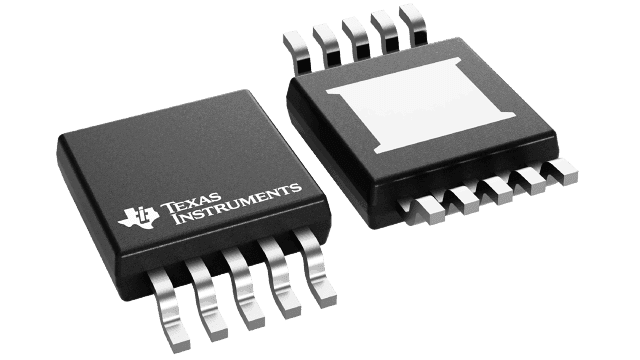

Product Images
