Synchronous buck controller for power management, featuring a wide 4.5V to 42V input voltage range and 9A output current capability. This single-phase, positive output configuration supports 3.3V output voltage. Designed for surface mount applications, it operates from -40°C to 125°C and is RoHS compliant. The component offers a quiescent current of 4.8mA and is supplied on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM25117PSQE/NOPB technical specifications.
General
Clock Sync
No
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Output Phases
1
Number of Outputs
1
Output Configuration
Positive
Output Current
9A
Output Voltage
3.3V
Packaging
Tape and Reel
Quiescent Current
4.8mA
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM25117PSQE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM25117PSQE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

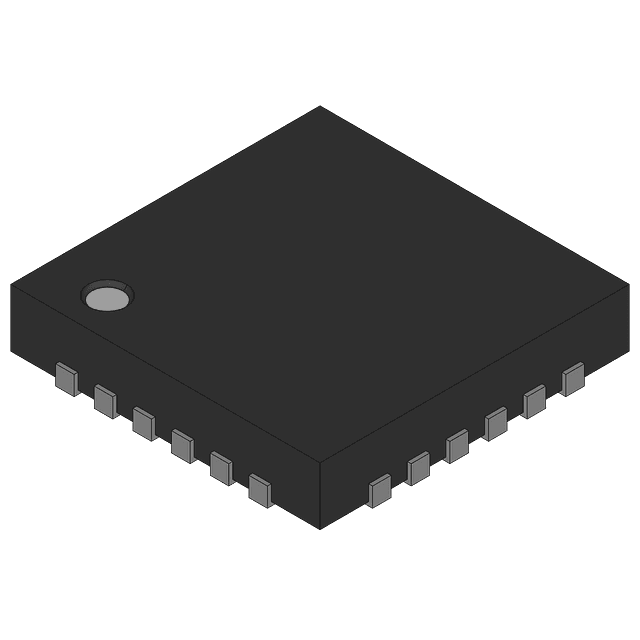

Product Images
