Automotive-grade, non-synchronous buck-boost controller for power management. Features a wide 3-42V input voltage range and adjustable positive output voltage up to 38V, capable of 4A output current. Operates at a maximum frequency of 575kHz with a 75% maximum duty cycle and a 14ns fall time. Surface mountable in a 20-HTSSOP package, this lead-free, RoHS-compliant component offers clock synchronization and operates from -40°C to 125°C.
Frequency575kHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM25118Q1MHX/NOPB technical specifications.
General
| Package/Case | HTSSOP |
| Clock Sync | Yes |
| Fall Time | 14ns |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Max Duty Cycle | 75% |
| Max Frequency | 575kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 4.5mA |
| Operating Supply Voltage | 42V |
| Output Configuration | Positive |
| Output Current | 4A |
| Output Type | Adjustable |
| Output Voltage | 38V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 4.5mA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM25118Q1MHX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM25118Q1MHX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

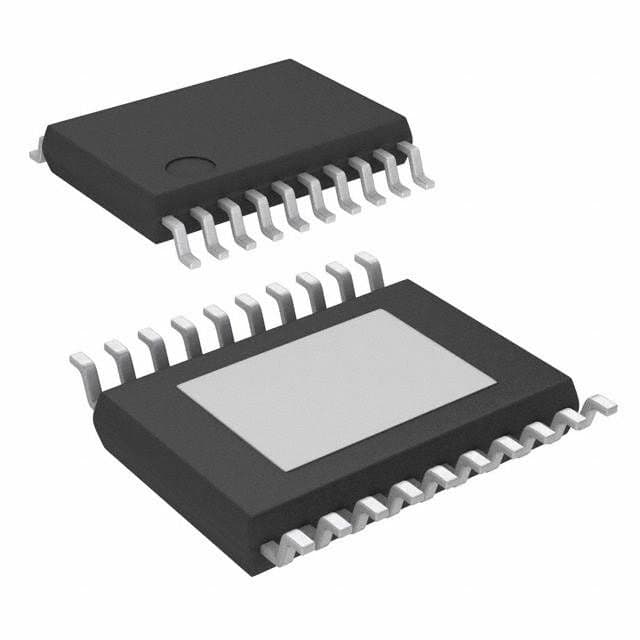

Product Images
