3A Step-Down DC/DC Switching Regulator, featuring a wide 6V to 42V input voltage range and adjustable output voltage up to 40V. This surface-mount component offers up to 91% efficiency and a 3A maximum output current. Operating across a -40°C to 125°C temperature range, it is housed in a compact 1.2mm high, 6.5mm long, 4.4mm wide HTSSOP package. RoHS compliant and lead-free, this single-channel regulator is supplied on tape and reel.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM25576MHX/NOPB technical specifications.
General
| Package/Case | HTSSOP |
| Efficiency | 91% |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Input Voltage | 42V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 40V |
| Min Output Voltage | 1.225V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerWise®, SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Thickness | 1mm |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM25576MHX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM25576MHX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

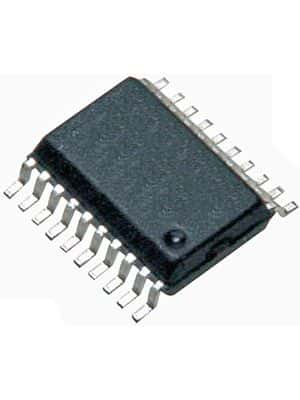

Product Images
