1A fixed output voltage regulator, featuring a 12V nominal output and a single positive output configuration. Operates with input voltages from 4V to 60V, delivering up to 1A output current. Achieves 88% efficiency at a 52kHz switching frequency. Packaged in a TO-220-5 through-hole mount, with an operating temperature range of -40°C to 125°C.
Frequency52kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2575HVT-12 technical specifications.
General
| Package/Case | TO-220-5 |
| Efficiency | 88% |
| Frequency | 52kHz |
| Lead Free | Contains Lead |
| Max Input Voltage | 60V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 12V |
| Min Output Voltage | 12V |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM2575HVT-12 Datasheet
Download the complete datasheet for Texas Instruments LM2575HVT-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

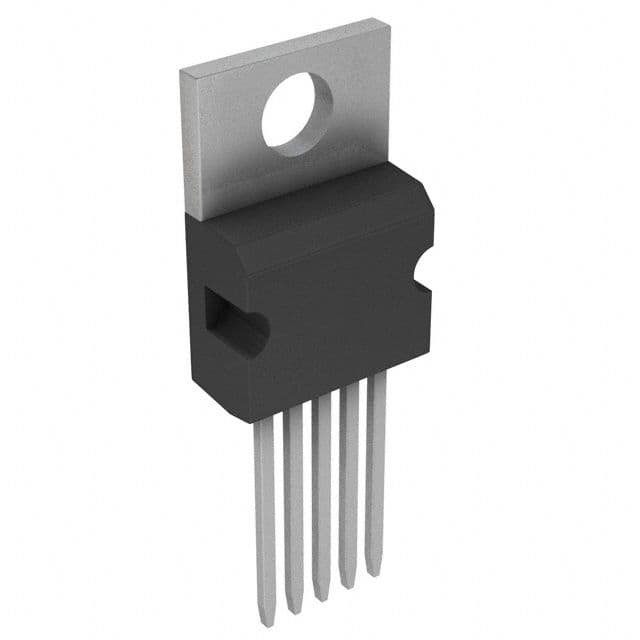

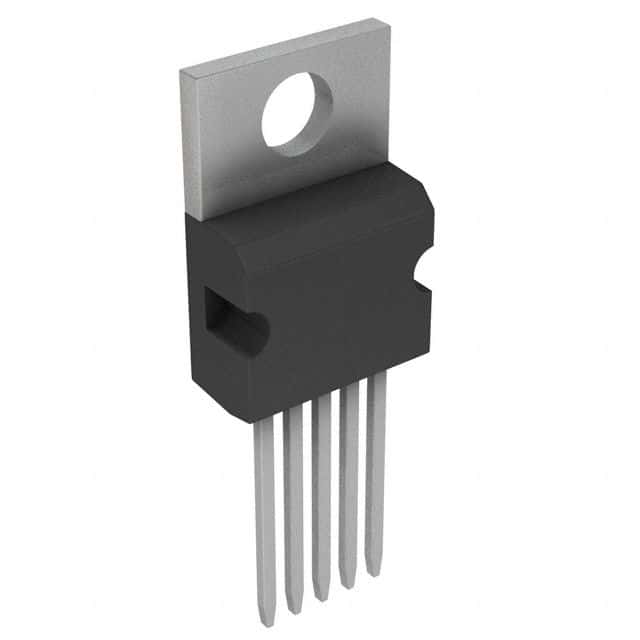

Product Images
