1A fixed output voltage regulator with a 15V nominal output, operating from a 4V to 60V input range. This positive output DC/DC controller features a 52kHz switching frequency and a maximum output current of 1A. Packaged in a TO-220-5 through-hole mount, it offers a wide operating temperature range of -40°C to 125°C.
Frequency52kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2575HVT-15 technical specifications.
General
Package/Case
TO-220-5
Frequency
52kHz
Height
4.7mm
Length
10.16mm
Max Input Voltage
60V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
15V
Min Output Voltage
15V
Max Supply Voltage
60V
Min Supply Voltage
4V
Mount
Through Hole
Nominal Output Voltage
15V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
15V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
4.58mm
Width
8.51mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2575HVT-15 Datasheet
Download the complete datasheet for Texas Instruments LM2575HVT-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

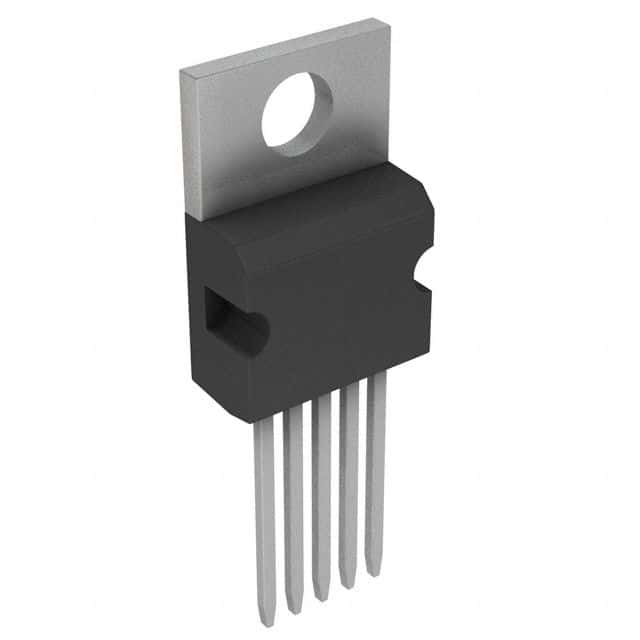

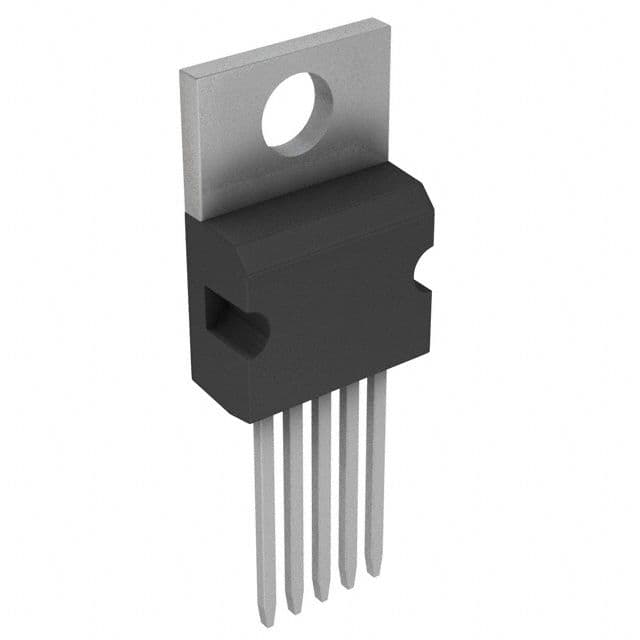

Product Images
