1A fixed output voltage regulator, featuring a 15V nominal output and a maximum output current of 1A. Operates with an input voltage range of 4V to 40V, supporting a maximum supply voltage of 40V. This through-hole component utilizes a TO-220-5 package and operates at a frequency of 52kHz. Designed for a wide temperature range from -40°C to 125°C, it offers a quiescent current of 10mA.
Frequency52kHz
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2575T-15 technical specifications.
General
| Package/Case | TO-220-5 |
| Frequency | 52kHz |
| Height | 4.7mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 15V |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Nominal Output Voltage | 15V |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Type | Fixed |
| Output Voltage | 15V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Thickness | 4.58mm |
| Width | 8.51mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM2575T-15 Datasheet
Download the complete datasheet for Texas Instruments LM2575T-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

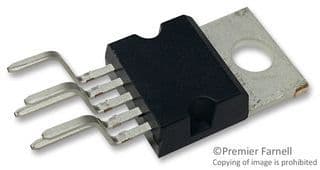

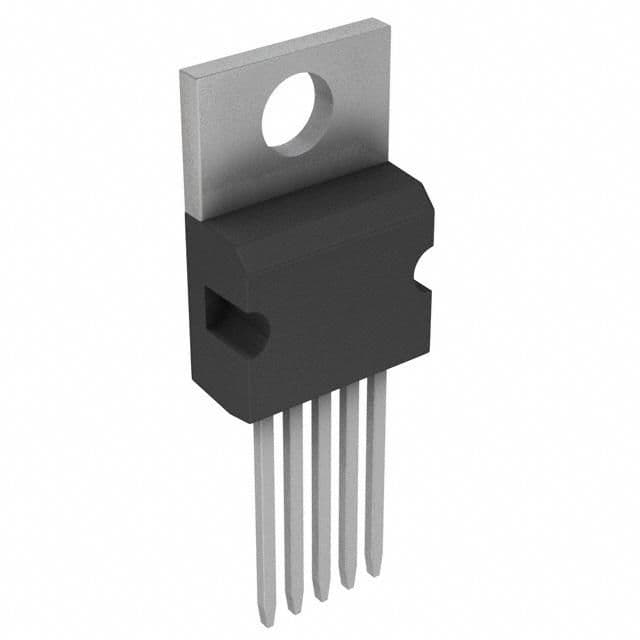

Product Images
