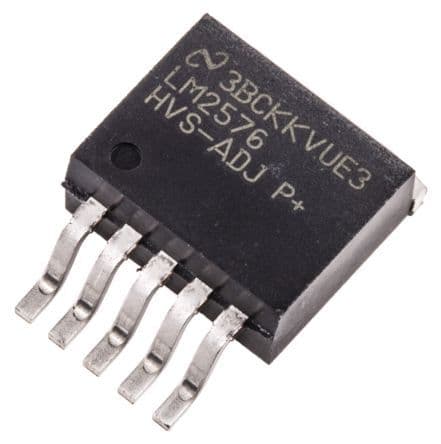

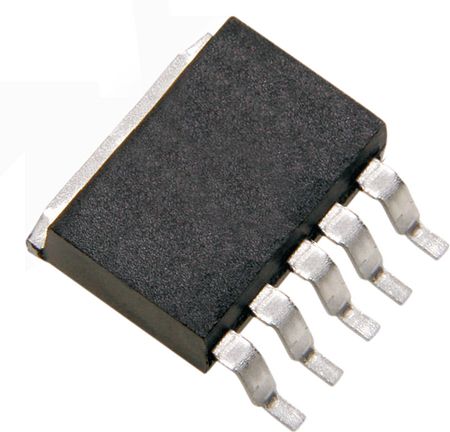

3A adjustable step-down regulator with a wide 4V to 60V input voltage range. Features low component count, 77% efficiency, and a maximum output voltage of 57V. Packaged in a TO-263 surface-mount case, this IC operates from -40°C to 125°C. Delivers up to 3A output current with a quiescent current of 5mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM2576HVS-ADJ/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263 |
| Efficiency | 77% |
| Height | 4.57mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 60V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 57V |
| Min Output Voltage | 1.23V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 60V |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 57V |
| Packaging | Rail/Tube |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM2576HV |
| Thickness | 4.58mm |
| Weight | 0.056128oz |
| Width | 8.64mm |
| RoHS | Compliant |
