3A, 12V fixed output step-down regulator with a wide 4V to 60V input voltage range. This power management IC features a low component count design and operates efficiently up to 88%. Packaged in a TO-263-5 surface mount case, it offers a maximum operating temperature of 125°C.
PackageTO-263-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2576HVSX-12 technical specifications.
General
| Package/Case | TO-263-5 |
| Efficiency | 88% |
| Height | 4.83mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Input Voltage | 60V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Min Output Voltage | 12V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 60V |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Thickness | 4.58mm |
| Width | 8.42mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM2576HVSX-12 Datasheet
Download the complete datasheet for Texas Instruments LM2576HVSX-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

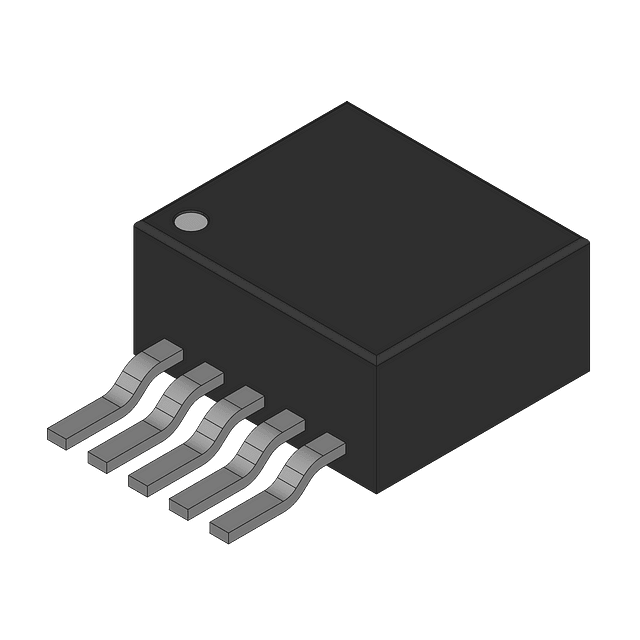

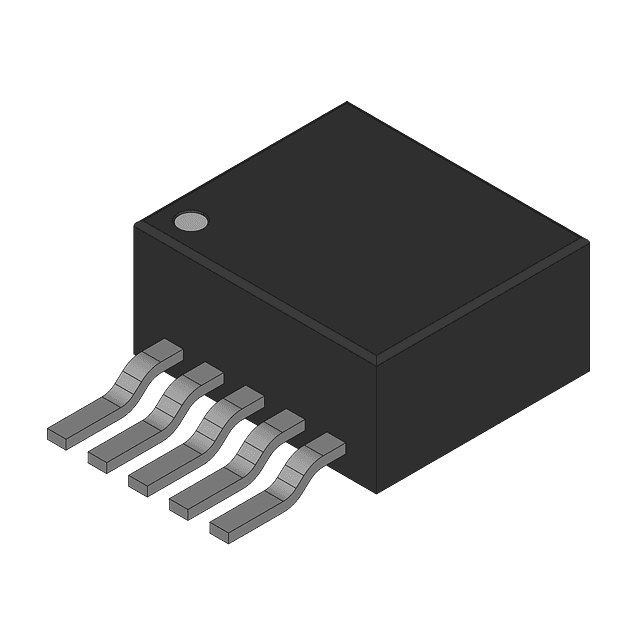

Product Images
