3A, 12V fixed output, step-down regulator with 4V to 60V input voltage range. Features 88% efficiency and a maximum duty cycle of 98%. Surface mountable in a TO-263 package, operating from -40°C to 125°C. Low component count design with 5mA quiescent current.
PackageTO-263
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2576HVSX-12/NOPB technical specifications.
General
| Package/Case | TO-263 |
| Efficiency | 88% |
| Height | 4.83mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Max Duty Cycle | 98% |
| Max Input Voltage | 60V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Fixed |
| Output Voltage | 12V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LM2576HV |
| Supply Current | 5mA |
| Thickness | 4.58mm |
| Width | 8.42mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2576HVSX-12/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2576HVSX-12/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

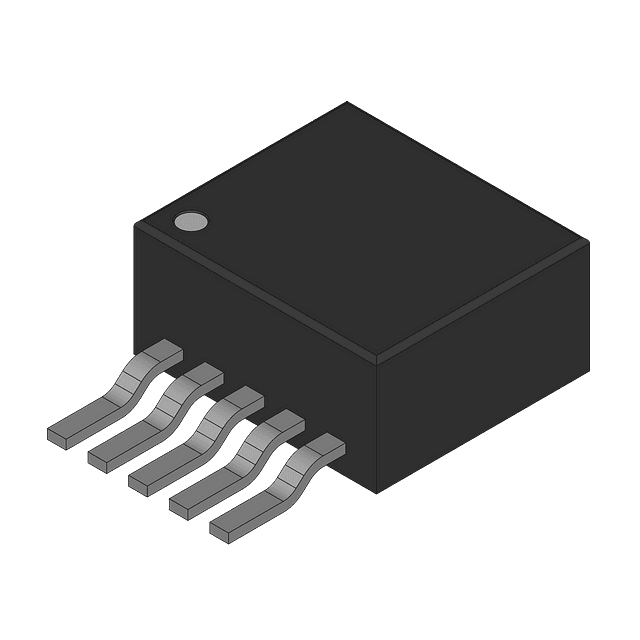

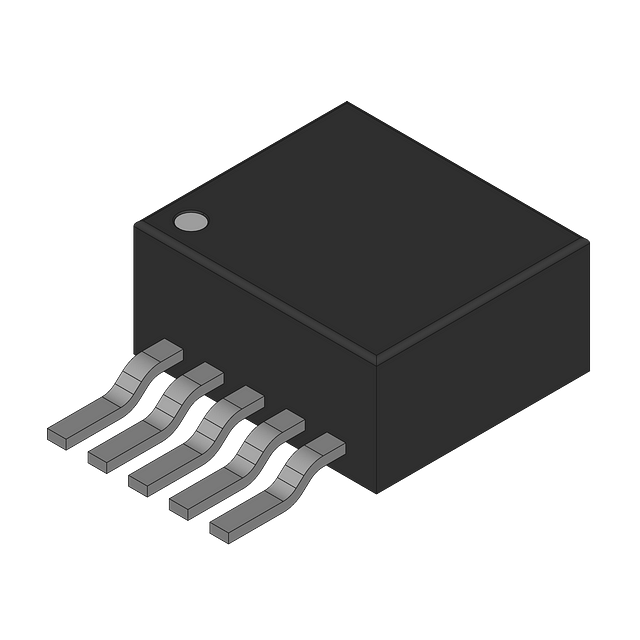

Product Images
